Stellar V
Stellar VIP20 Batten 2FT/4FT Five-Colour / Multi-Watt Sensor & Emergency options
Product descriptionFeaturesApplications

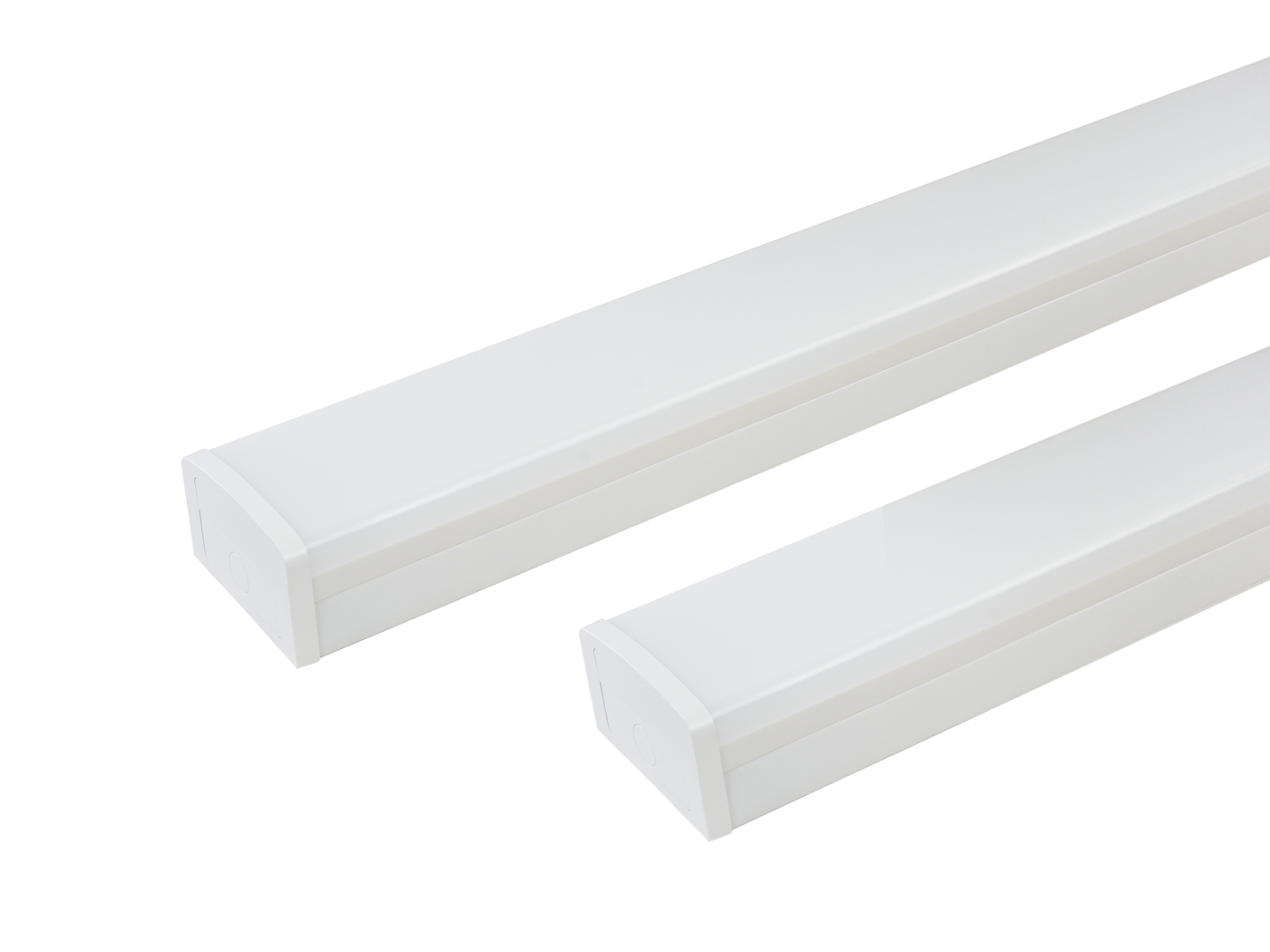

The Stellar V is an IP20 batten ideal for commercial and industrial applications.
It features Five-Colour selectable and Multi-Watt selectable technology, giving installers the choice of 5 colour temperatures varieties are required to meet a broader range of needs.
With the installer in mind, the Stellar V has been engineered with a clever toolless end module.
It also incorporates multiple cable entry points and a large 6mm terminal block.
Available in 2ft and 4ft, Stellar V comes with sensor and emergency options.

Technical Specification

Hide filters

Technical Specification
PictureOrder CodeDescriptionWattageTemperatureLumensMaterial (Body)Material DiffuserFitting ColourDimensions (mm)WeightLifetime L70B50WarrantyDatasheet
211023IP20 Batten 2FT20W3000K / 4000K / 5000K / 5700K / 6500K900Lm / 2000LmMetalOpal PCWhite600 x 80 x 65 mm1kg50,000 hours5 years

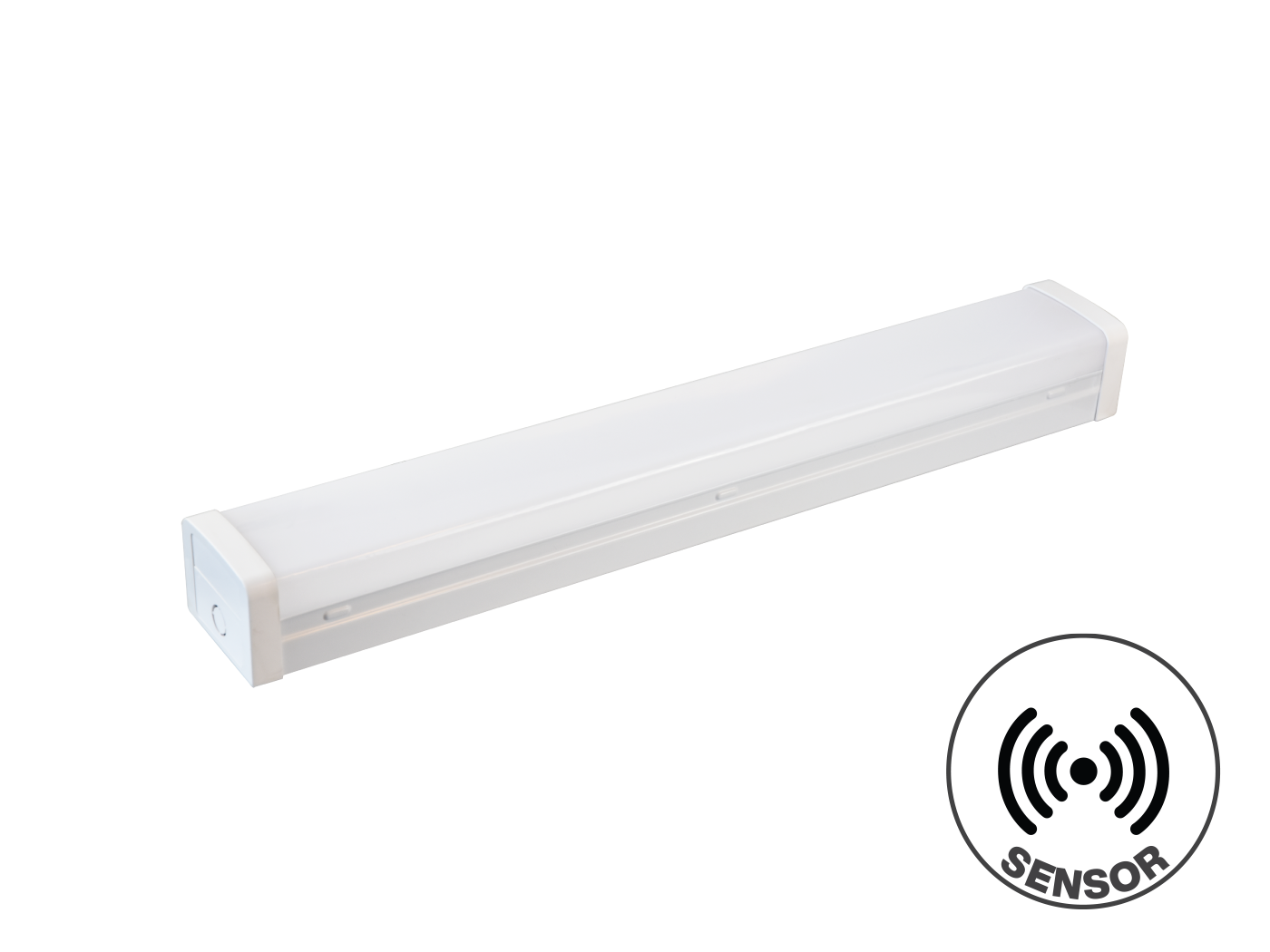

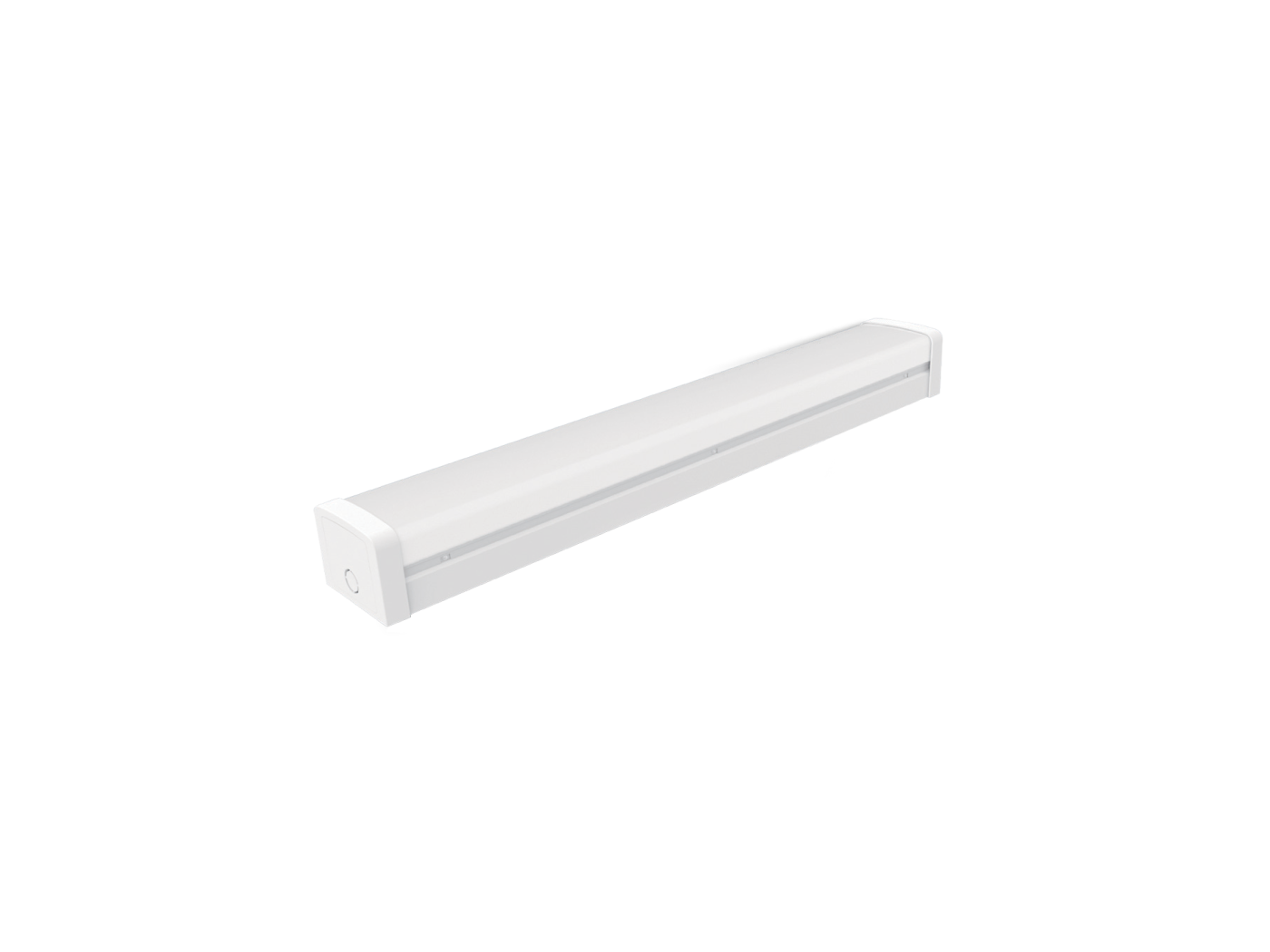

211023DSIP20 Sensor Batten 2FT20W3000K / 4000K / 5000K / 5700K / 6500K2000LmMetalOpal PCWhite600 x 80 x 65 mm1.02kg50,000 hours5 years

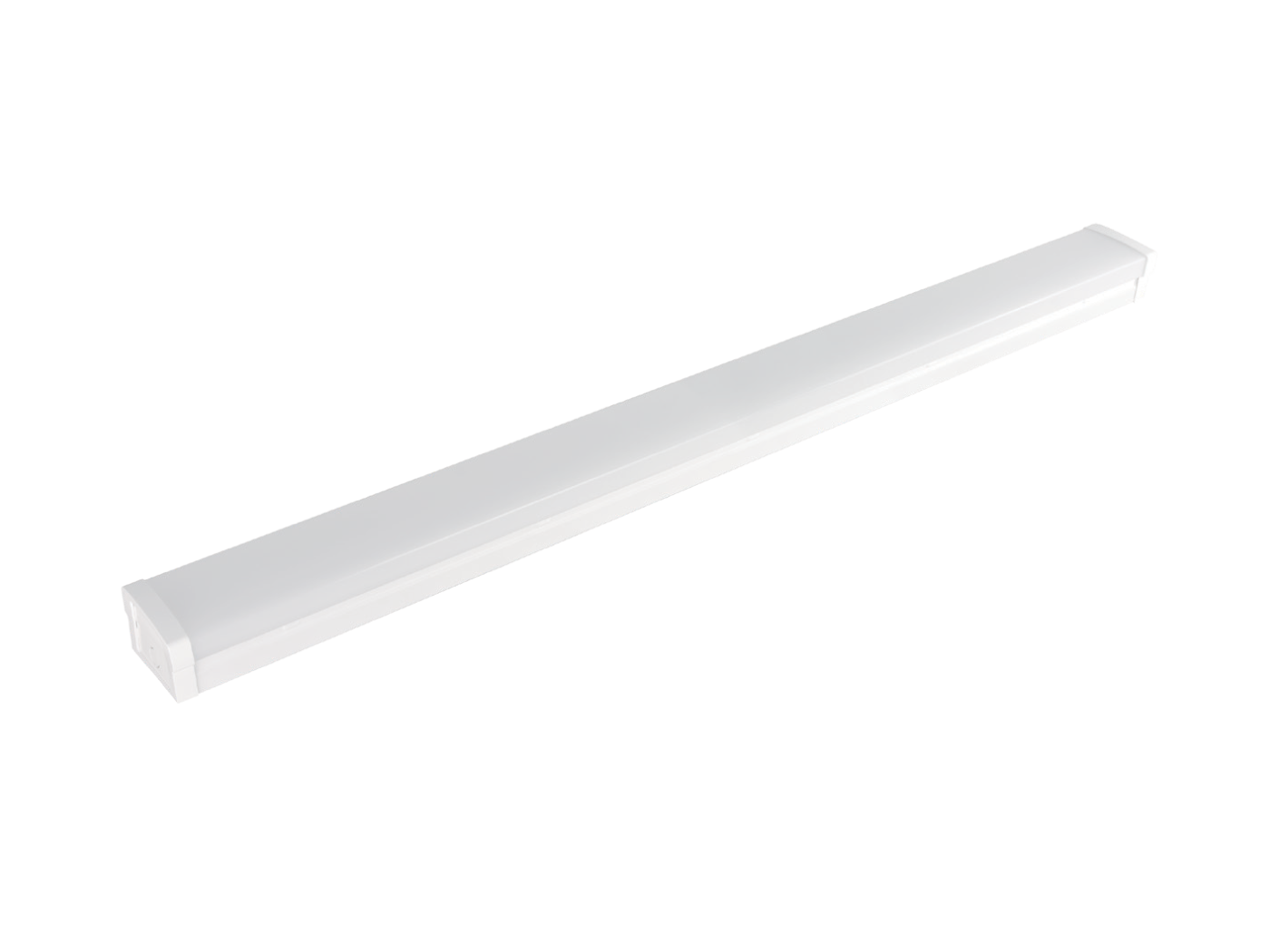

211024IP20 Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 4000LmMetalOpal PCWhite1200 x 80 x 65 mm1.9kg50,000 hours5 years
211024BKIP20 Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 4000LmMetalOpal PCBlack1200 x 80 x 65 mm1.9kg50,000 hours5 years

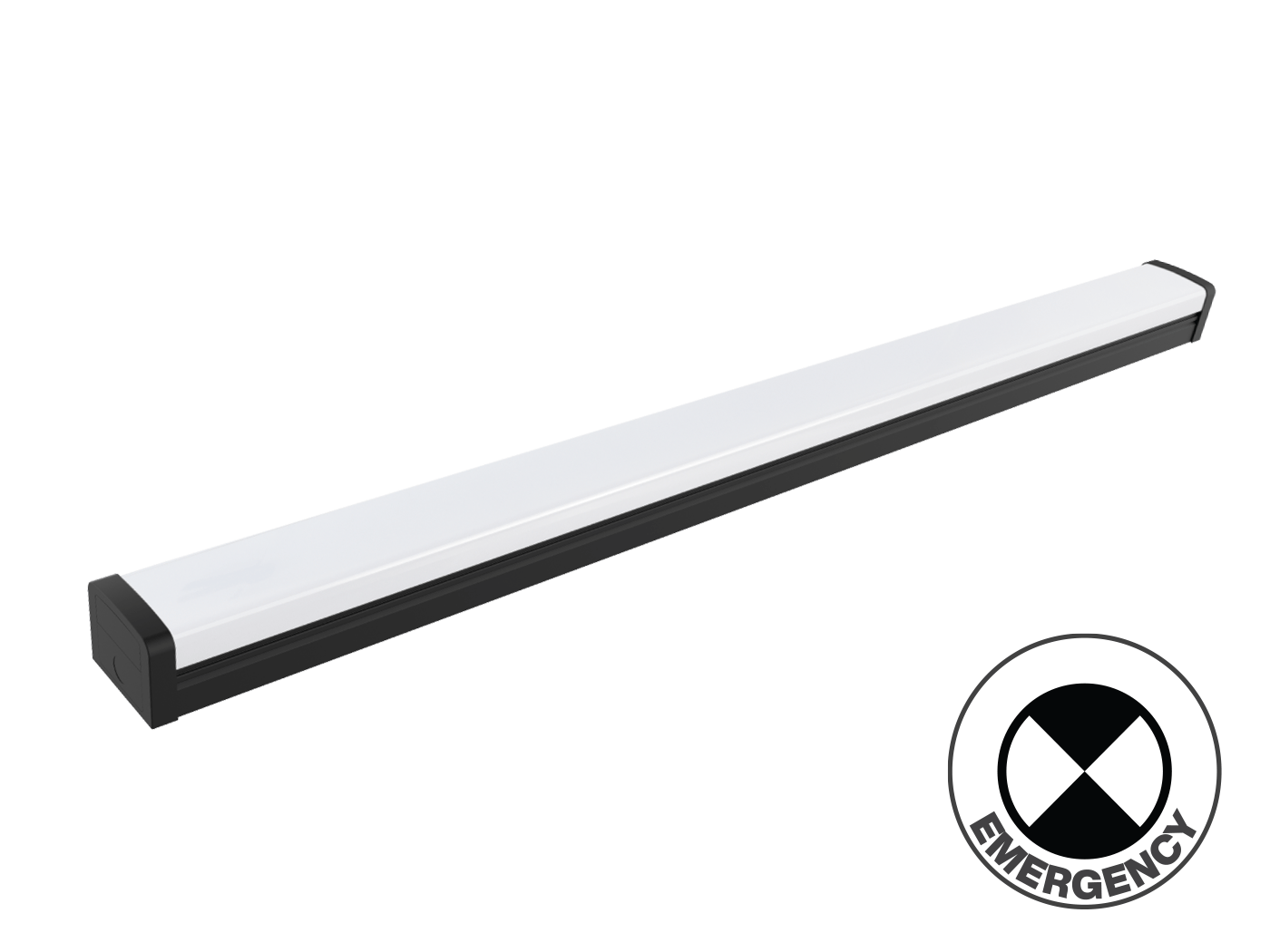

211024BKEMIP20 Emergency Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 4000LmMetalOpal PCBlack1200 x 80 x 65 mm2.18kg50,000 hours3 years

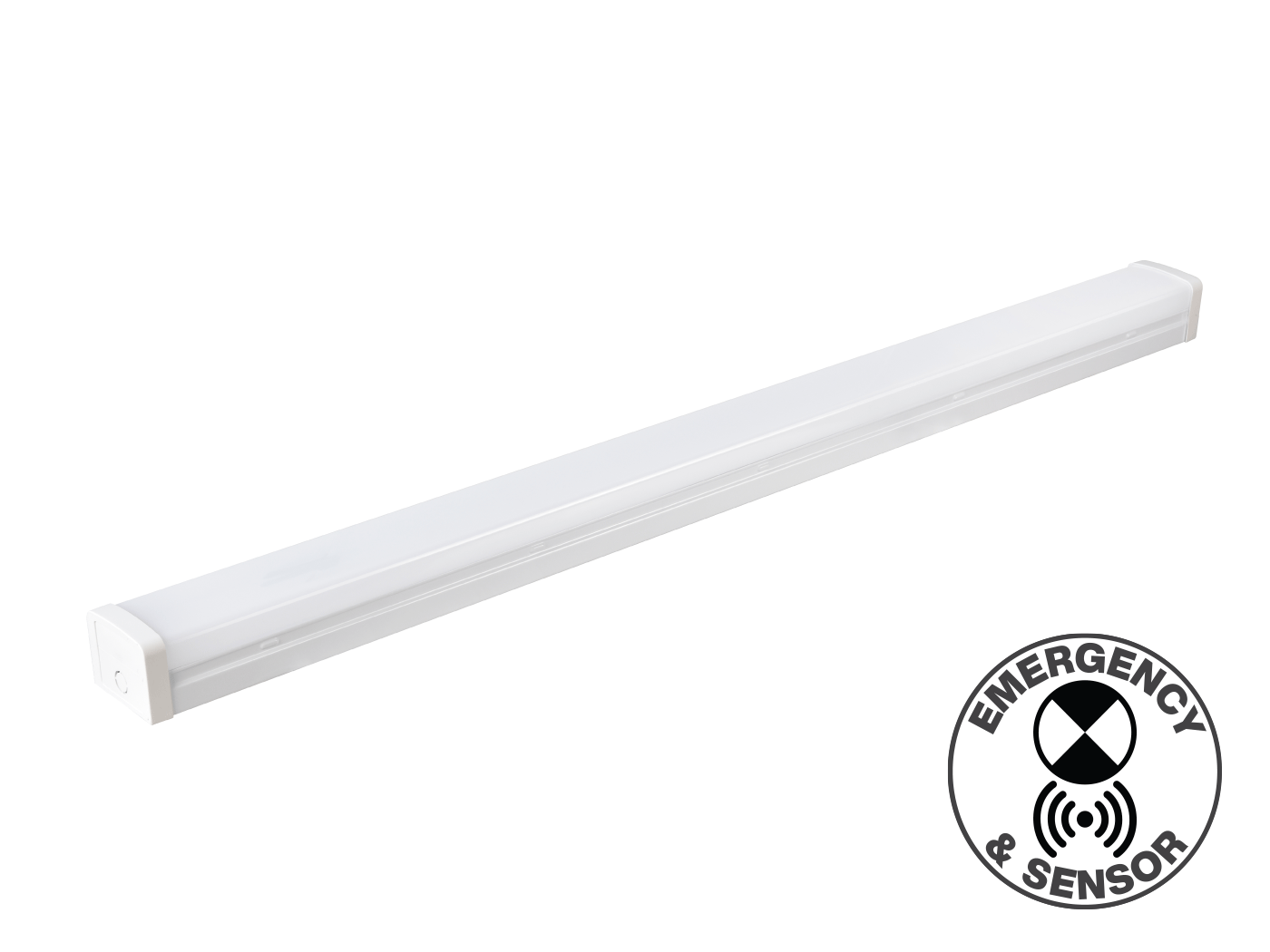

211024DEMSIP20 Sensor and Emergency Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K4000LmMetalOpal PCWhite1200 x 80 x 65 mm2.2kg50,000 hours3 years

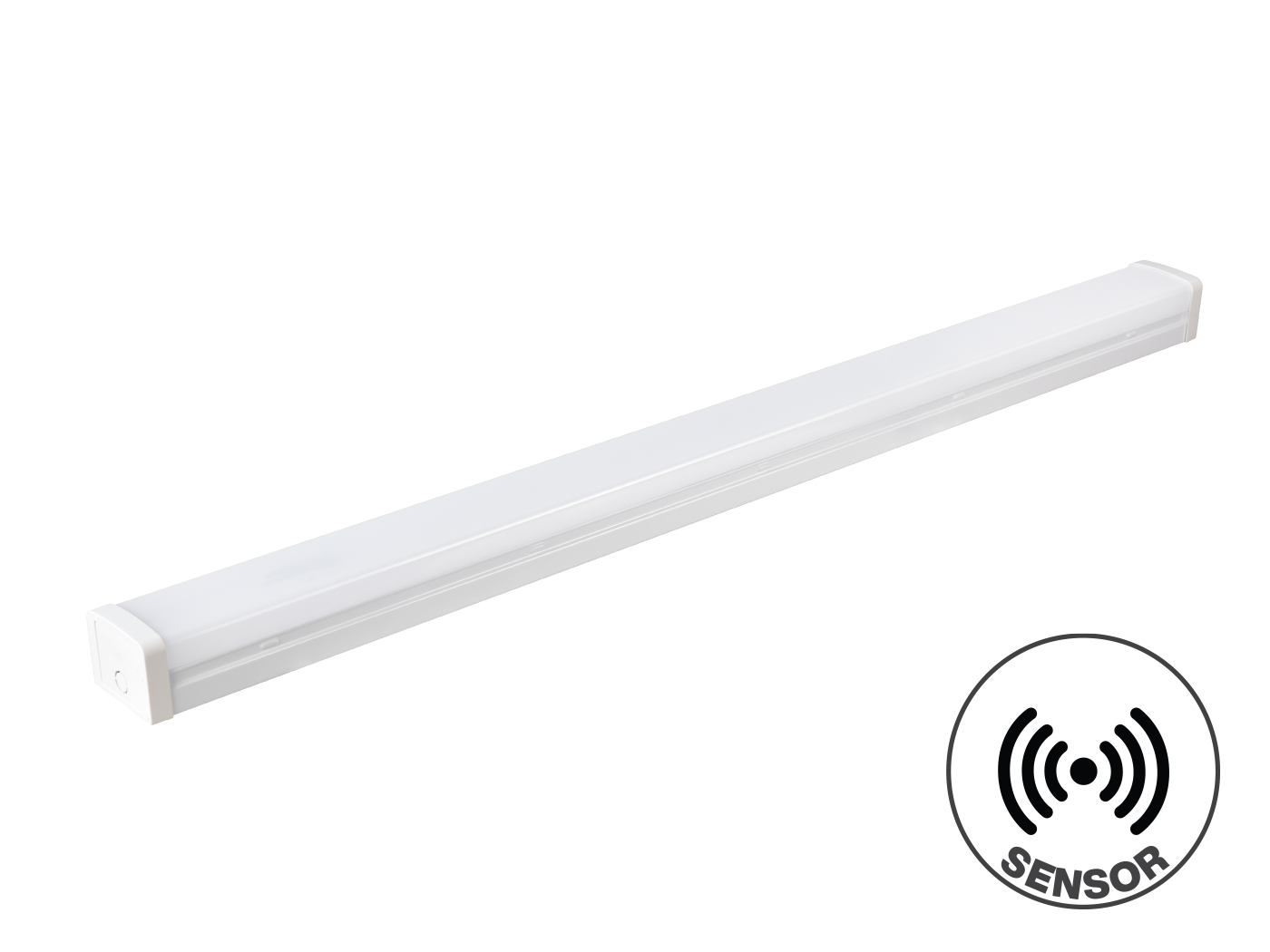

211024DSIP20 Sensor Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K4000LmMetalOpal PCWhite1200 x 80 x 65 mm1.92kg50,000 hours5 years

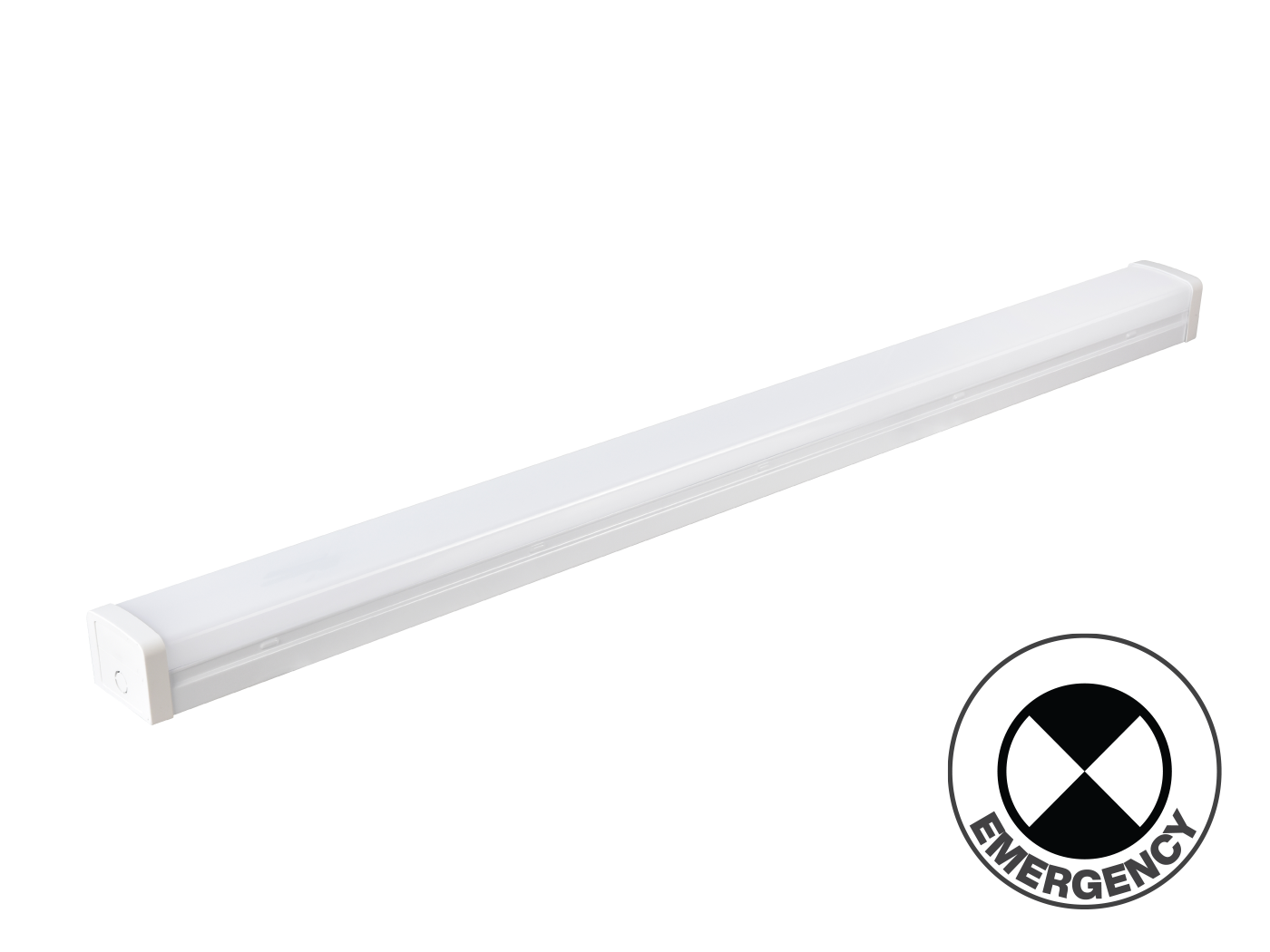

211024EMIP20 Emergency Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 4000LmMetalOpal PCWhite1200 x 80 x 65 mm2.18kg50,000 hours3 years

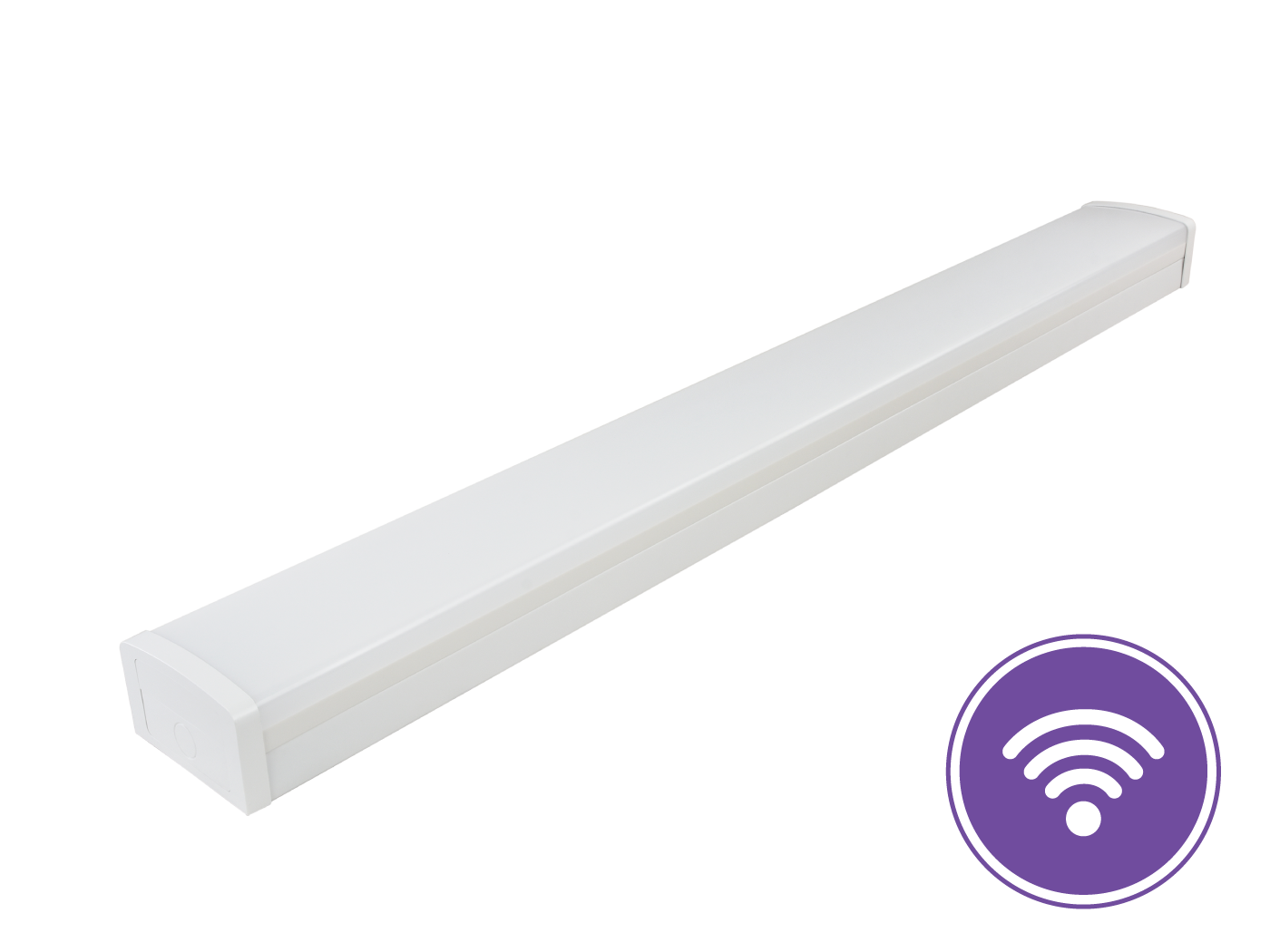

211026DSIP20 Sensor Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K4000LmMetalOpal PCWhite1240 x 130 x 80 mm2.67kg50,000 hours5 years
211025IP20 Batten 2FT20W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 2000LmMetalOpal PCWhite1240 x 130 x 80 mm1.52kg50,000 hours5 years

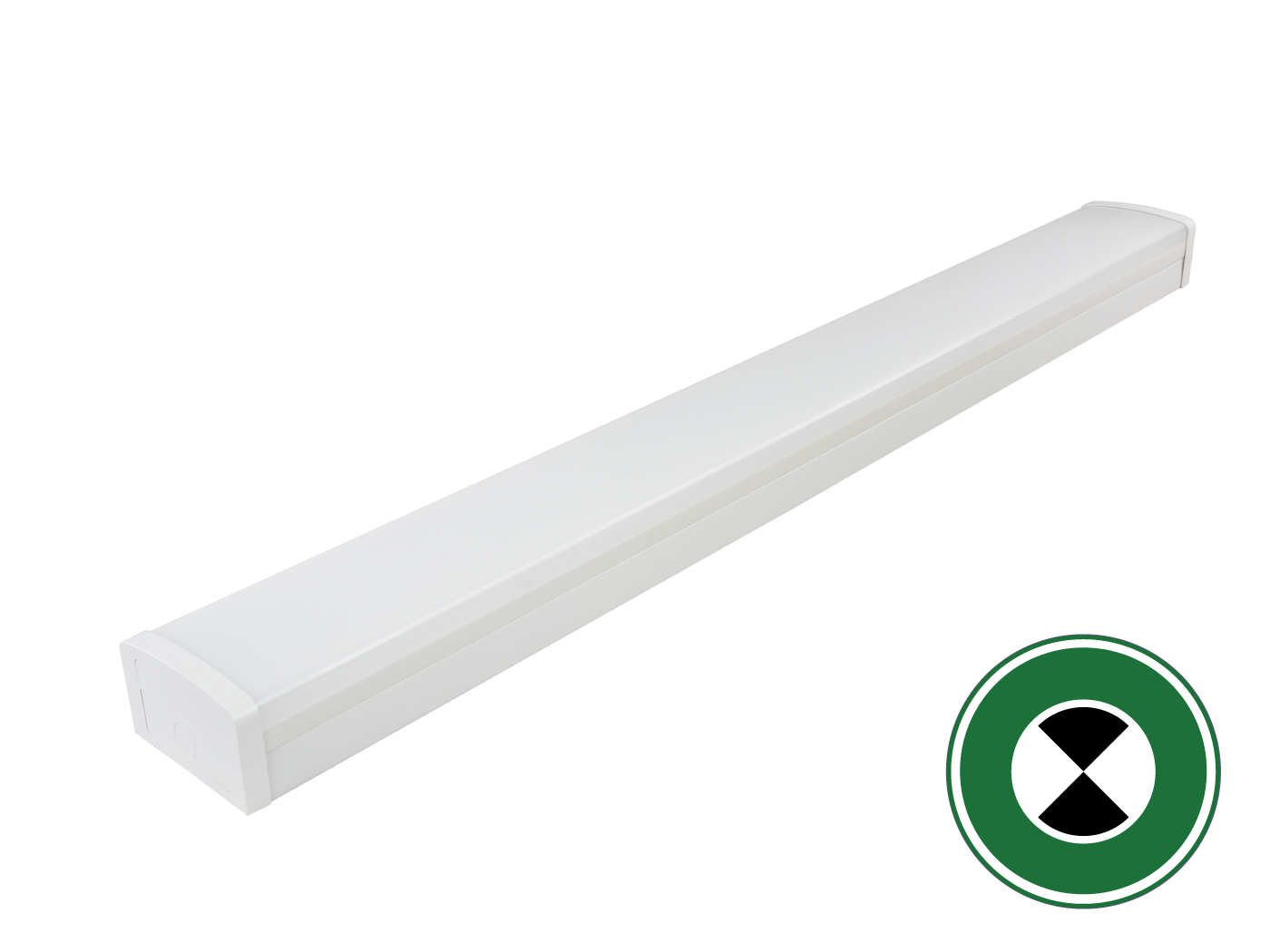

211026EMIP20 Emergency Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 4000LmMetalOpal PCWhite1240 x 130 x 80 mm2.95kg50,000 hours3 years
211025IP20 Batten20W3K · 4K · 5K · 5.7K · 6.5K2000LmWhite640 x 130 x 851.52kg
211024HBKIP20 Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1250Lm / 5000LmMetalOpal PCBlack1200 x 80 x 65 mm1.9kg50,000 hours5 years

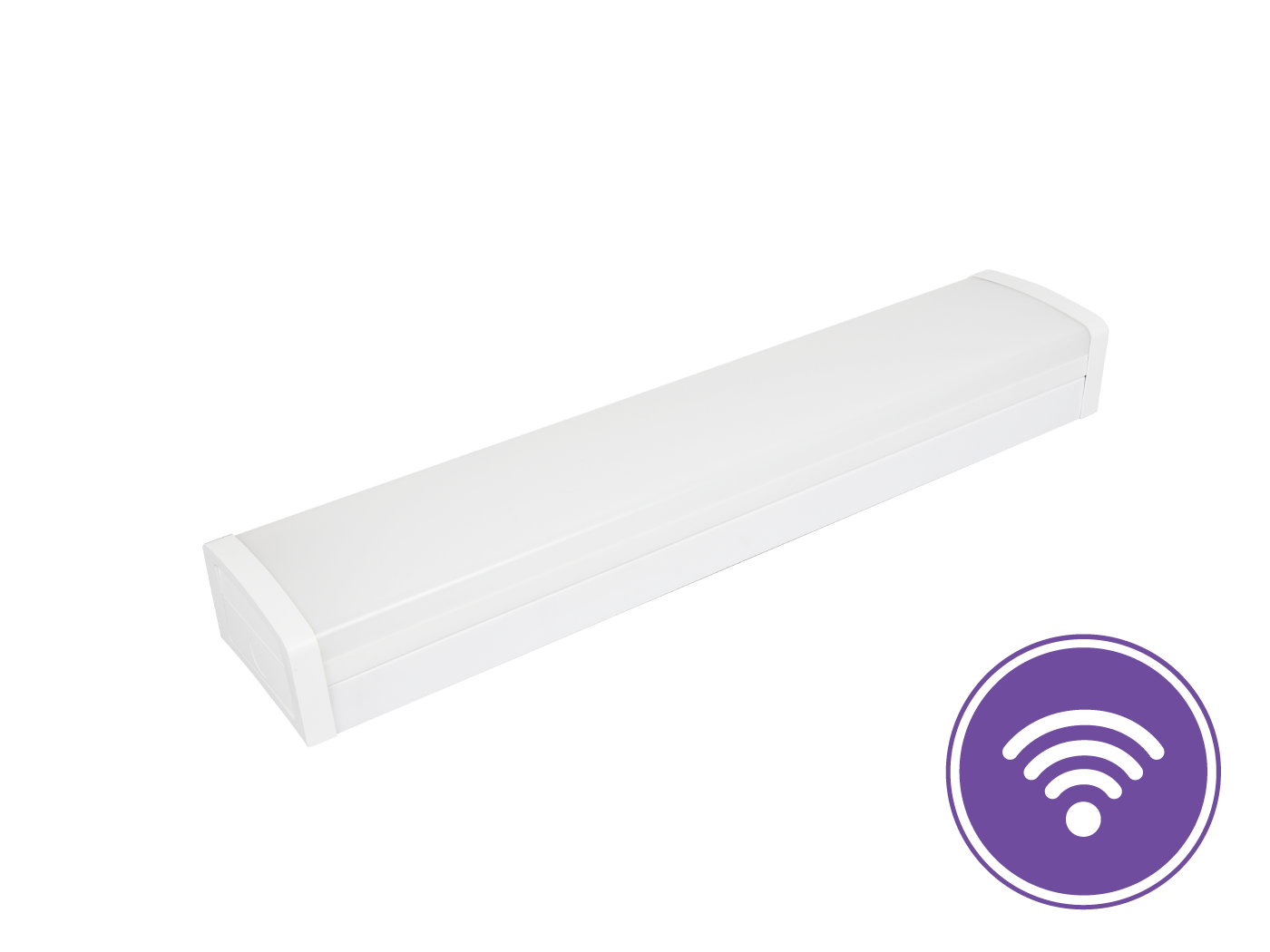

211025DSIP20 Sensor Batten 2FT20W3000K / 4000K / 5000K / 5700K / 6500K2000LmMetalOpal PCWhite640 x 130 x 80 mm1.54kg50,000 hours5 years

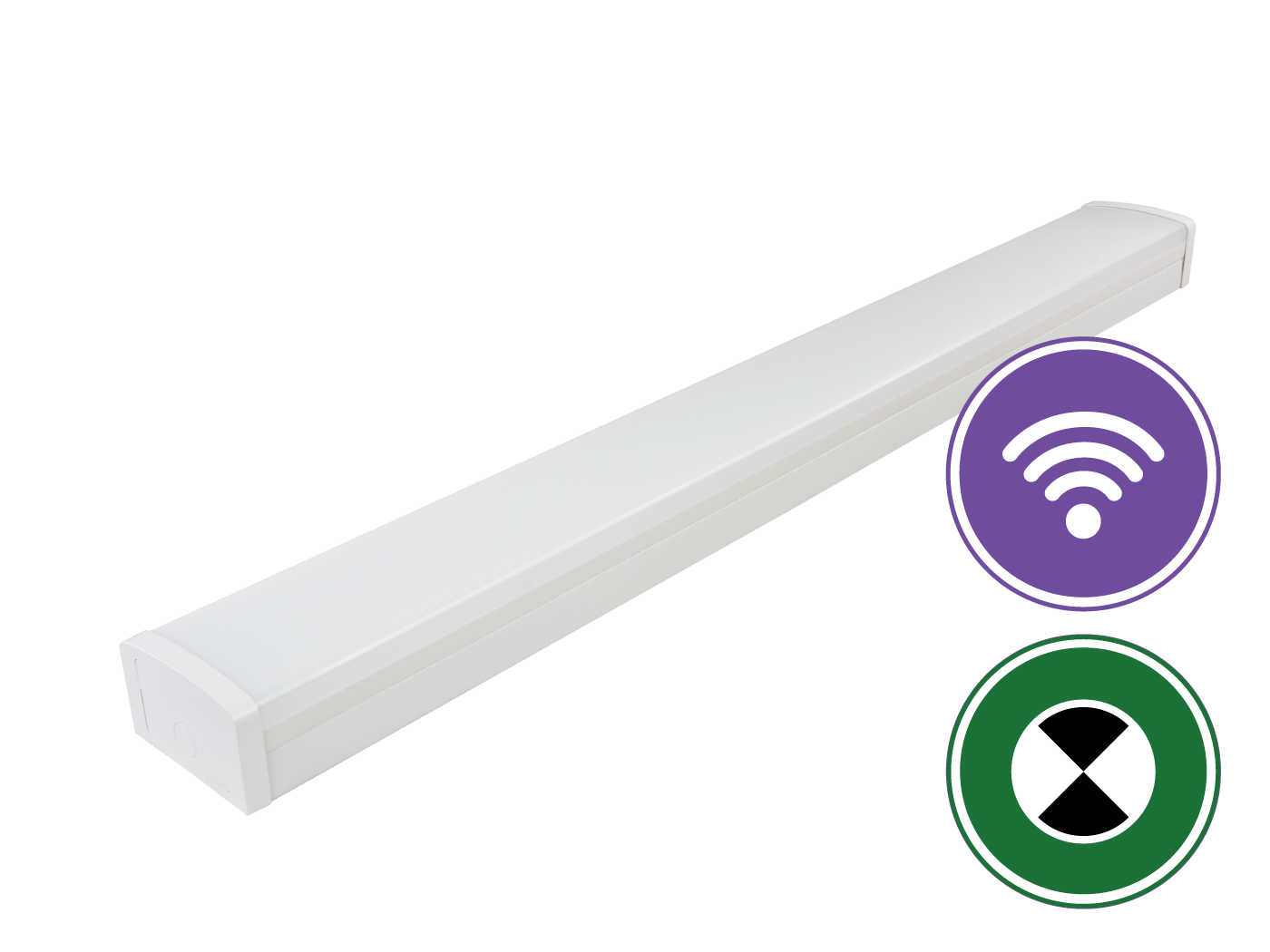

211026DEMSIP20 Sensor and Emergency Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K4000LmMetalOpal PCWhite1240 x 130 x 80 mm2.97kg50,000 hours3 years
211024HIP20 Batten 4FT20W / 14W / 10W3000K / 4000K / 5000K / 5700K / 6500K1250Lm / 5000LmMetalOpal PCWhite600 x 80 x 65 mm1.9kg50,000 hours5 years
211024HEMIP20 Emergency Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1250Lm / 5000LmMetalOpal PCWhite1200 x 80 x 65 mm2.18kg50,000 hours3 years
211024HDEMSIP20 Sensor & Emergency Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1250Lm / 5000LmMetalOpal PCWhite1200 x 80 x 65 mm2.2kg50,000 hours3 years
211024HDSIP20 Sensor Batten 4FT20W / 14W / 10W3000K / 4000K / 5000K / 5700K / 6500K1250Lm / 5000LmMetalOpal PCWhite600 x 80 x 65 mm1.92kg50,000 hours5 years
211023HDSIP20 Sensor Batten 2FT20W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 2500LmMetalOpal PCWhite600 x 80 x 65 mm1.02kg50,000 hours5 years
211023HIP20 Batten 2FT20W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 2500LmMetalOpal PCWhite600 x 80 x 65 mm1kg50,000 hours5 years

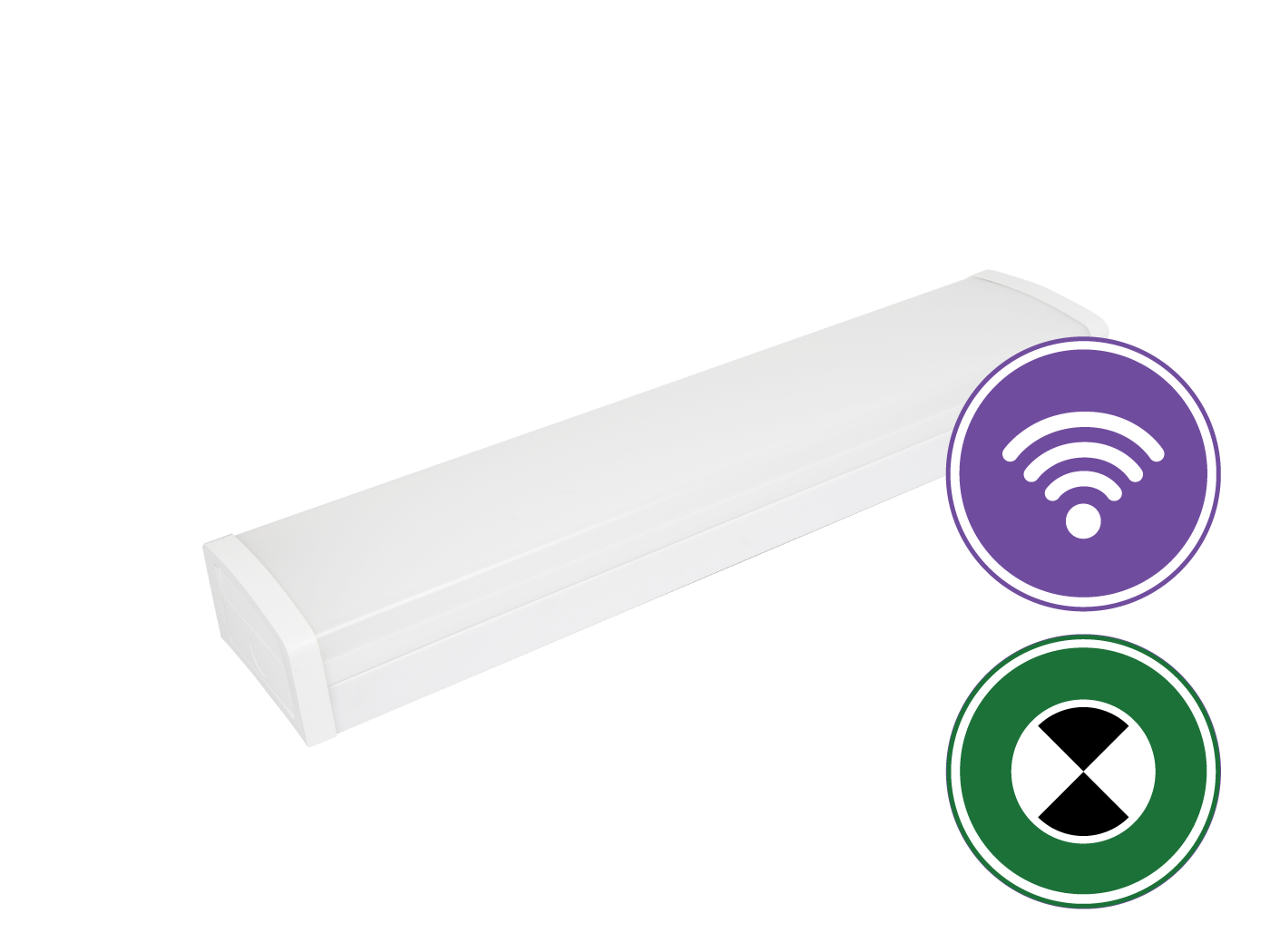

211025DEMSIP20 Sensor and Emergency Batten 2FT20W3000K / 4000K / 5000K / 5700K / 6500K2000LmMetalOpal PCWhite640 x 130 x 80 mm1.84kg50,000 hours3 years
211026IP20 Batten 4FT40W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 4000LmMetalOpal PCWhite1240 x 130 x 80 mm2.65kg50,000 hours5 years

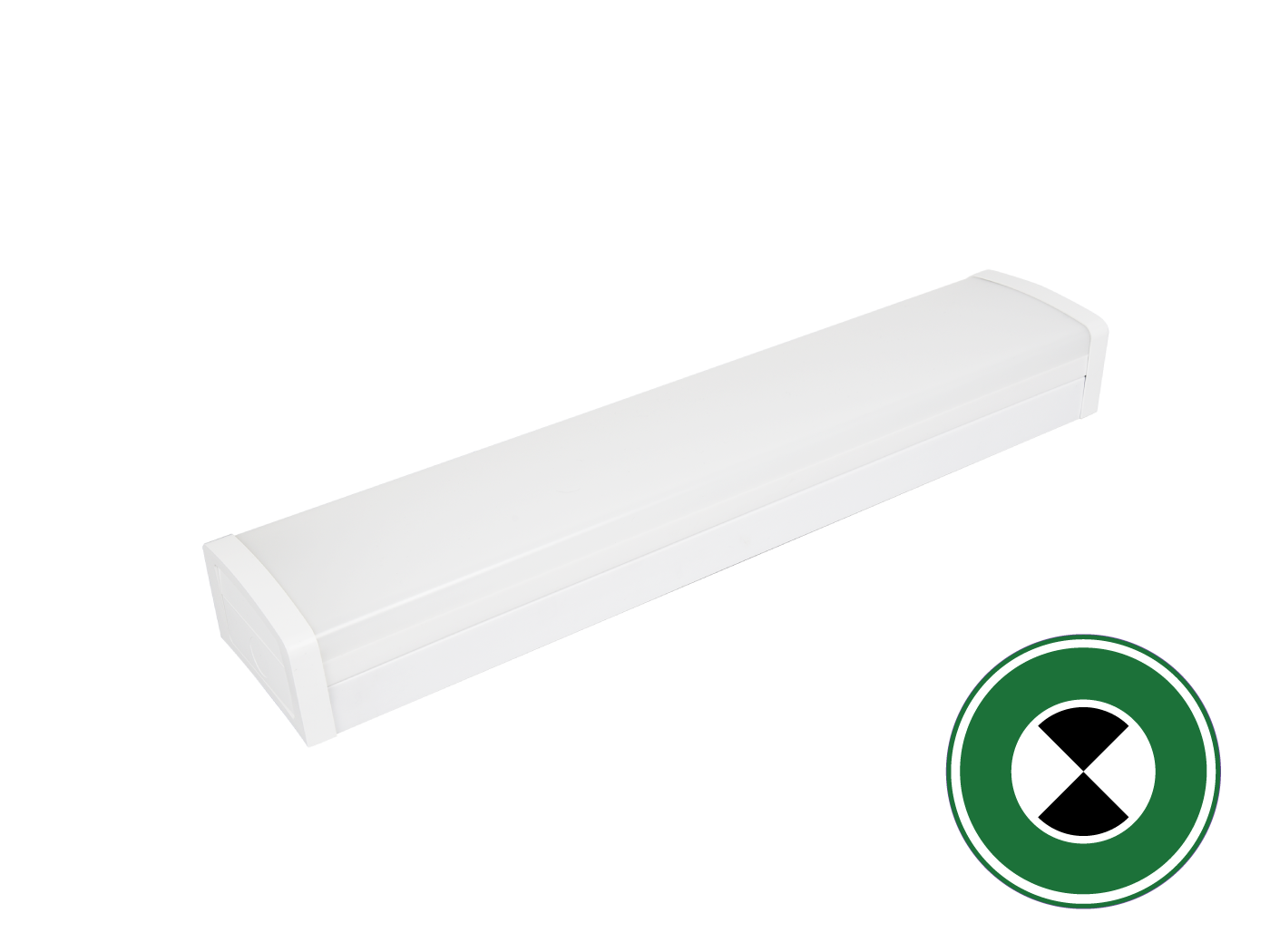

211025EMIP20 Emergency Batten 2FT20W3000K / 4000K / 5000K / 5700K / 6500K1000Lm / 2000LmMetalOpal PCWhite640 x 130 x 80 mm1.82kg50,000 hours3 years
